Description
General Data:
- Operating Temperature Range: -25~55°C
- Cooling: Fan
- Noise: <30dB
- Communication with BMS: RS485; CAN
- Weight: 34.5Kg
- Size (mm): 422W x 702H x 281D
- Protection Degree: IP65
- Installation Style: Wall-mounted
- Warranty: 5 Years
- SA: NRS 097 certified and COCT Certified
Features:
- Supporting Wi-Fi or GSM monitoring
- Visual power flow screen
- Parallel/Multi invert function grid-tied and off-grid
- Compatible with main electrical grid voltages or power generators
- Self-consumption and feed-in to the grid
- Auto restart while AC is recovering
- Auto earth bond feature (Via a relay)
- Fully programmable controller
- Programmable supply priority for battery or grid
- Programmable multiple operation modes: on-grid/off-grid & UPS
- Configurable battery charging - current/voltage based on the application
- Configurable AC / solar / generator charger priority by LCD setting
- Overload/over-temperature/short-circuit protection
- Smart battery charger design for optimized battery protection
- Limiting function installed to prevent excess power overflow to grid
- Colourful touch LCD, IP65 protection degree
- DC couple and AC couple to retrofit existing solar system
- Max. 16 inverters in parallel; Support multiple batteries parallel
- Max. charging/discharging current of 190A

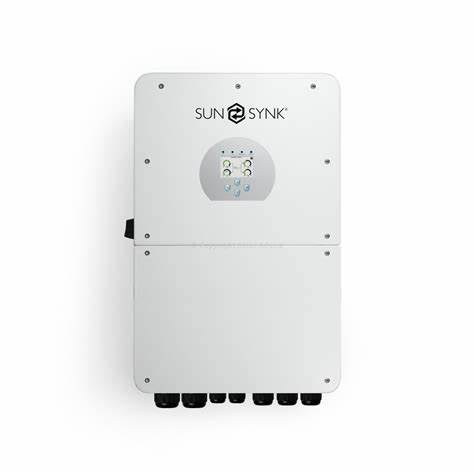

- 16kW super hybrid inverter
- Support storing energy from diesel generator
Battery Input Data:
- Battery type: Lead-acid or Lithium-ion
- Battery Voltage Range: 43~60V
- Max. Charging Current: 275A
- Max. Discharging Current: 300A
- Charging Curve: 3 Stages / Equalisation
- External Temperature Sensor: Yes
- Charging Strategy for Li-Ion Battery: Self-Adaptation to BMS
