Description

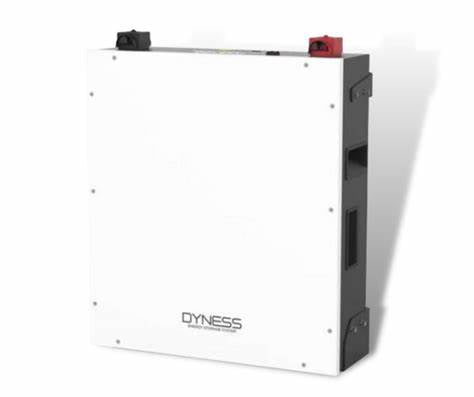

Dyness 4.8KW Lithium Battery A48100
A48100 lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of A48100 according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. The product is especially suitable for energy storage applications with high operating temperatures, limited installation space, long power backup time and long service life.
Specifications:
- Battery Type: LiFePo4
- Warranty: 10-years
- Nominal Battery Energy: 4.8kWh
- Nominal Capacity: 100Ah
- Nominal Voltage: 48V
- Charge Cut-Off Voltage: 54.75V
- Discharge Cut-Off Voltage: 42V
- Recommended Charge & Discharge Current: 50A
- Maximum Charge & Discharge Current: 75A
- IP20: Protected against dust and environmental factors.
- Charge Temperature: Operates flawlessly between 0°C to 55°C.
- Discharge Temperature: Functions smoothly between -20°C to 55°C.
- Cycle Life: Provides up to 6000 cycles, ensuring long-term value.
- Communication: Stay connected with CAN/RS485/RS232 options.
- Installation Type: Choose between floor and wall mounting.
- Weight: 45 kg.
- Dimensions (W x D x H): 504 x 597 x 155 mm.
Product Properties
A48100 energy storage product’s positive electrode materials are lithium iron phosphate, battery cells are managed effectively by BMS with better performance, the system’s features as below:
-
Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution environment friendly battery.
-
Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.
-
Carries battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal temperature.
-
Self-management on charging and discharging, Single core balancing function.
-
Intelligent design configures integrated inspection module.
-
Flexible configurations allow parallel of multi battery for longer standby time.
-
Self-ventilation with lower system noise.
-
Less battery self-discharge, then recharging period can be up to 10 months during the storage.
-
No memory effect so that battery can be charged and discharged shallowly.
-
With wide range of temperature for working environment, -20℃ ~ +55℃, circulation span and discharging performance are well under high temperature.
-
Less volume, lighter weight.
