Description

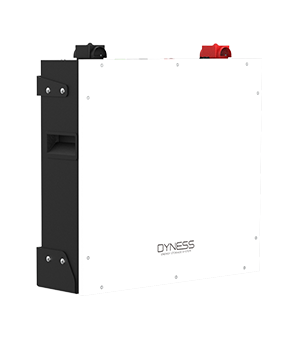

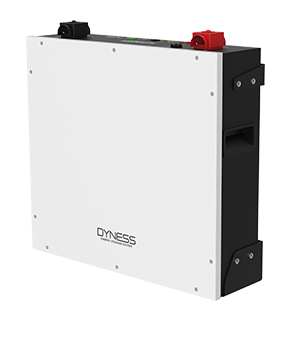

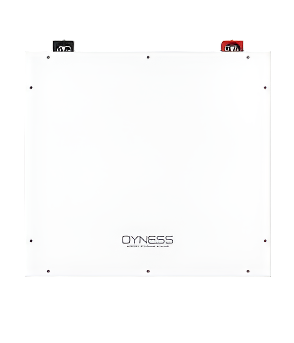

Model BX51100
- Battery Type: LiFePO4
- Battery Rated Power: 5.12kWh
- Battery capacity: 100Ah
- Max Charge Amp: 50A
- Max Charge Voltage (Bulk): 56.5V
- Absorption voltage: 56V
- Float Voltage: 55.5V
- Shutdown (cut off) voltage: 48~50V
- Shutdown (cut) SOC: 20%
- Reset voltage: 52V
- Maximum charging current: 50A * amount of battery
- Maximum discharge current: 50A * amount of battery
- Maximum charge/discharge current: 75A (15s)
- Communication: CAN / RS485
- Dimension [W. x D x H]: 558*545*150mm
- Net weight: 50Kg
- Charge temperature: Range0-50℃
- Discharge temperature: Range- 20-50℃
- Maximum discharge power: 3.84kW
- Protection level: IP20
- Warranty: 10 years
- Calendar life [1]: 6000 cycles
- Certification and safety standard: CE/UN38.3
- Compatible inverters: Goodwe/SMA/Victron/Imeon/Solis / Luxpower/Growatt/SAJ/Voltronic/Deye, etc.
